Last updated Wednesday, April 16, 2008
This tutorial will help you set up custom compiles in GTKRadiant. This way, you can mix and match different compiles any way you like, or only run certain stages at certain times.

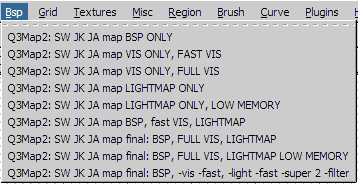

This is what the BSP menu will look like when we're done:
This will be quick and dirty, so let's just cut to the chase.
When GTKRadiant runs a compile, it will start a separate program called "Q3map2.exe" and tell it what to do. Q3map2 is your standard Quake 3 compiler, and it suits its purpose well. When you compile a map, the compiler has to do three separate stages:
If you have BSP monitoring turned on, GTKRadiant will watch the compile as it goes and notify you of any errors that are found. If it is turned off, then Radiant will just blindly tell the compiler to run. You should ALWAYS have BSP Monitoring on, UNLESS IT CAN'T FINISH COMPILES. Otherwise, you won't get notified of critical errors.
Anyways, if you go to File > Project settings, you'll see this window.
Right now, you don't really need to worry about anything but the bottom half of the window. (You know, the part that has the complicated things in it.) First off, and this is very important,
You're going to delete all the compiles that are displayed, BUT, you first need to get something!
Open up one of the compiles that are displayed in the window already. You should see something that looks like this:
This is the first thing you need to know:
For those who are curious, no, I can't use your filepaths to hack you. That information is completely irrelevant to getting inside your compupter. Kind of a stupid question, but I've been asked similar things before...
Once you have created your compile codes, select the compile options in Radiant's Project Settings window one at a time, and click the remove button to delete them, shown below:
(Note: If you ever want to map for single player mode, You need to leave the single player compiles! They all have "(single)" at the beginning of their name. All other compiles can go, but if you really want to, you can keep them.)
Now, click the "Add..." button. A new window will pop up, which looks like this:

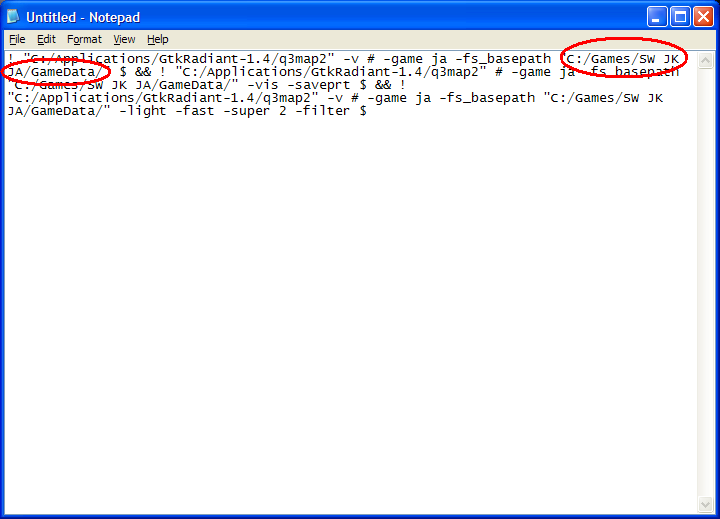

Once you have given your filepaths up above and hit the "create" button, all the compiles will be listed below. The names are listed in green, and the actual compile commands will be listed in the text boxes underneath them.

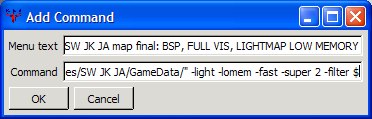

In case it's not obvious, you will be putting all 9 compiles into the "Add Command" window, one-by-one, putting the compile name in the "menu text" field and the text that was generated will go into the "command" field, like so:
Your turn. This doesn't take long, really. :]
Congratulations, you made it! You can mix and match the order of these compiles any way you like. However, you have one last thing to do. Restart Radiant to get the list to appear in the proper order. You are done! Give yourself a knuckle sandwich on the back, you deserve it. : >
To use these compiles, you can either choose one of the "final" options, which will automatically do whatever it says after that in the name, or you can pick and choose what you want to do. If you want to do a lightmap or a vis compile, you MUST do a bsp stage first. If you update your .map file, you will have to redo your bsp compile.
Fast VIS is a fast type of VIS compile, full VIS can take hours (even days!) to complete but gives much better results (if you did your structural brushes well).
The lightmap stage is just a normal lightmap stage, but the lightmap low memory stage is for computers with very little RAM available. It will take longer, but it will get the job done.
